Precision Optical Inspection

See every detail. Catch every defect.

Optysys is an AI-enabled optical inspection system for manufacturing. Combining a 4K camera with 30x optical zoom, precision XY motion control, and intelligent software, it brings laboratory-grade inspection to your production line.
Explore FeaturesRead the Docs

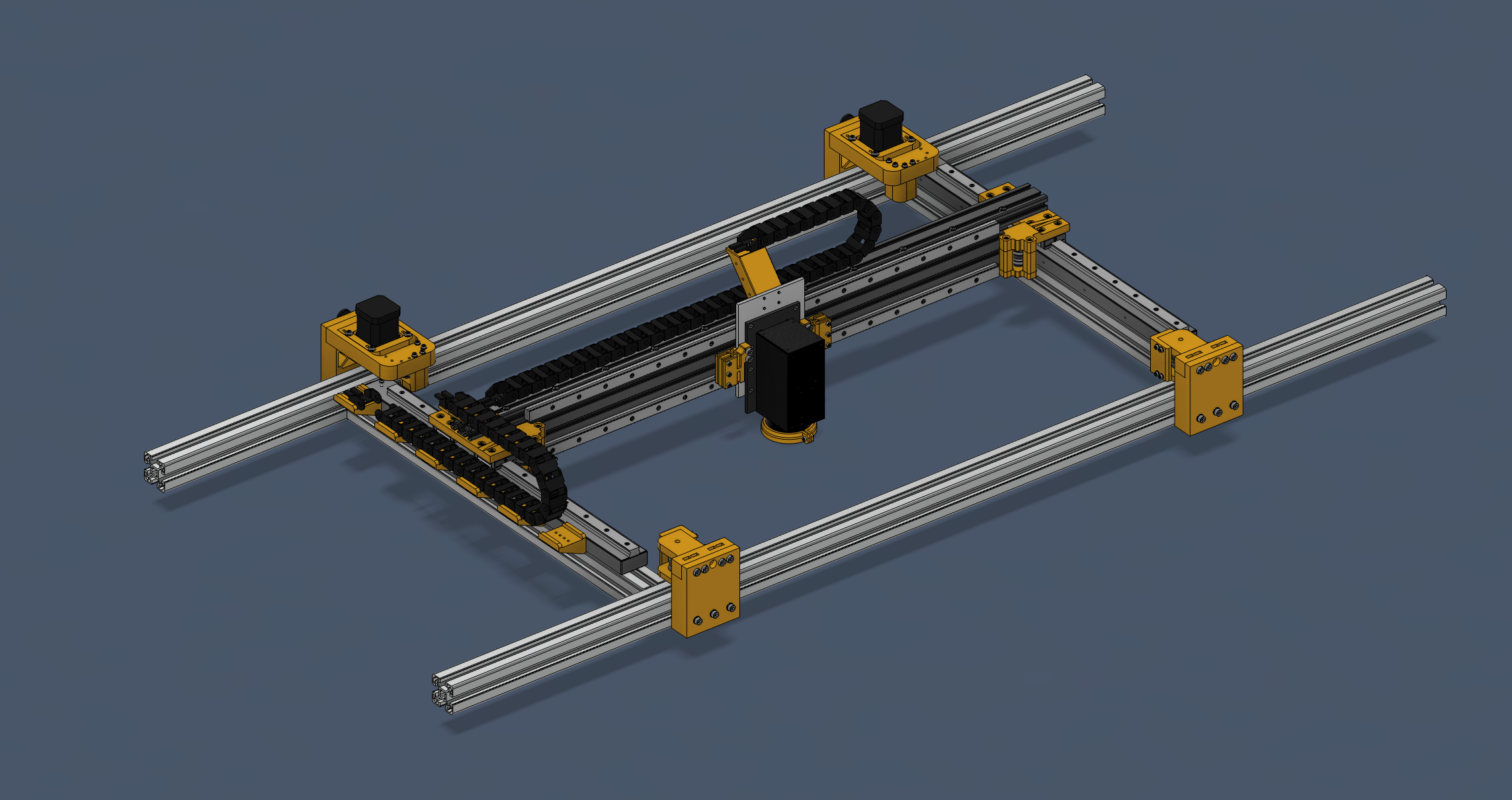

Optysys XY gantry inspection system - 3D render showing the precision mechanical frame with camera mount
Features

Everything you need for optical inspection

From hardware control to cloud archival, Optysys delivers a complete inspection workflow in a single cross-platform application.
  • 4K Camera System
    Sony FCB-EW9500H camera block with 30x optical zoom, 4.17 MP resolution, and exceptional low-light sensitivity down to 0.00008 lx.
  • XY Motion Control
    GRBL-based gantry system for precise XY positioning. Jog, rapid move, and home with configurable speeds and work area dimensions.
  • Live Inspection
    Real-time video feed up to 1080p with FPS monitoring, freeze detection, auto-reconnect, and software image sharpening.
  • Image Annotation
    Draw rectangles, ellipses, polygons, and arrows directly on captured images. Full color, line width, and vertex editing with cloud sync.
  • AI Inspection
    Run GPU-accelerated ONNX models on the live camera feed. Detect PCB components, solder defects, and anomalies with real-time bounding box overlays.
  • Project Management
    Organize inspections into teams, spaces, and projects with role-based access control. Review and collaborate via the Optysys Dashboard.
  • Cloud Storage
    Upload annotated images and metadata to the Optysys Cloud, organized by project with team-level security.
View All Features
How It Works

From setup to inspection in minutes

Optysys is designed for simplicity. Connect your hardware, position the camera, inspect, and archive -- all from a single interface.
1

Connect

Plug in the Optysys unit via USB 3.0. The software auto-detects the camera and GRBL controller on any platform.

2

Position

Use the XY gantry to move the camera over your inspection area. Zoom in up to 30x to examine fine details.

3

Inspect

Capture images, annotate defects with shapes and text, and link findings to your projects.

4

Archive

Upload annotated images and metadata to the cloud. Every inspection is documented, traceable, and searchable.

Specifications

Built for industrial precision

Optysys combines best-in-class hardware with modern cross-platform software to deliver reliable, repeatable inspections.
Sony FCB-EW9500H
Camera
4K (2160p/60)
Resolution
30x Optical
Zoom
1/1.8" STARVIS CMOS
Sensor
USB 3.0
Interface
Windows, macOS, Linux
Platforms
Cross-Platform

One application. Every desktop.

Optysys runs natively on Windows, macOS (Apple Silicon), and Linux. Built with .NET and Avalonia UI, it delivers consistent performance and a native look-and-feel on every platform.
  • Windows
    Full support for x64 systems with DirectShow camera enumeration.
  • macOS
    Native Apple Silicon (ARM64) support with Dock integration.
  • Linux
    ARM and x64 support for embedded and desktop installations.

Ready to transform your inspection process?

Get in touch to learn how Optysys can improve quality control in your manufacturing line.
